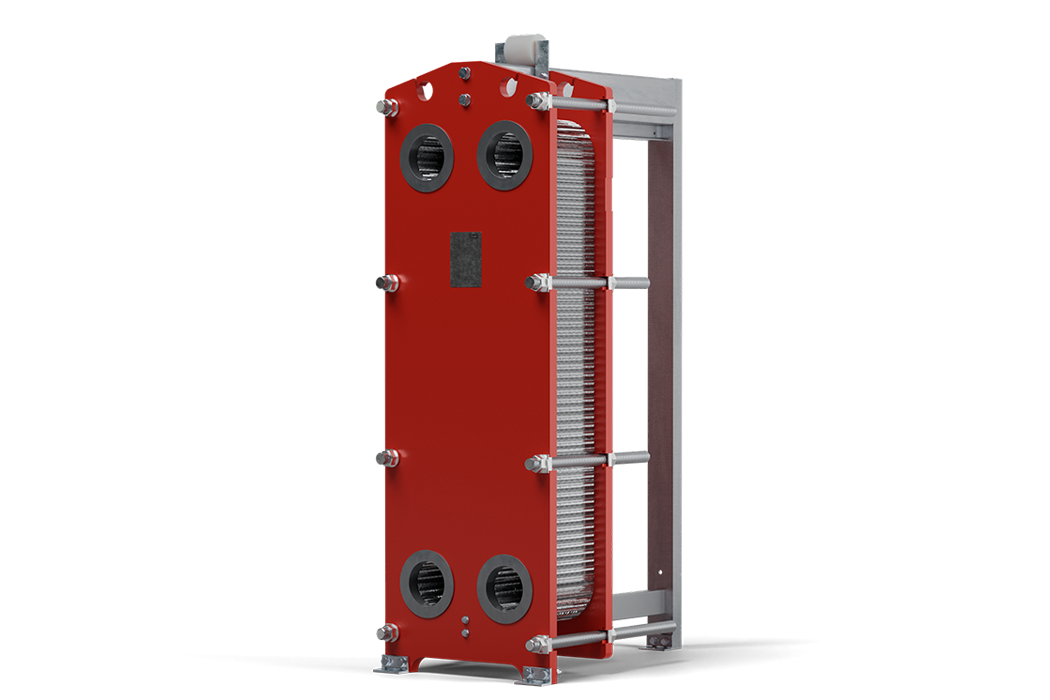

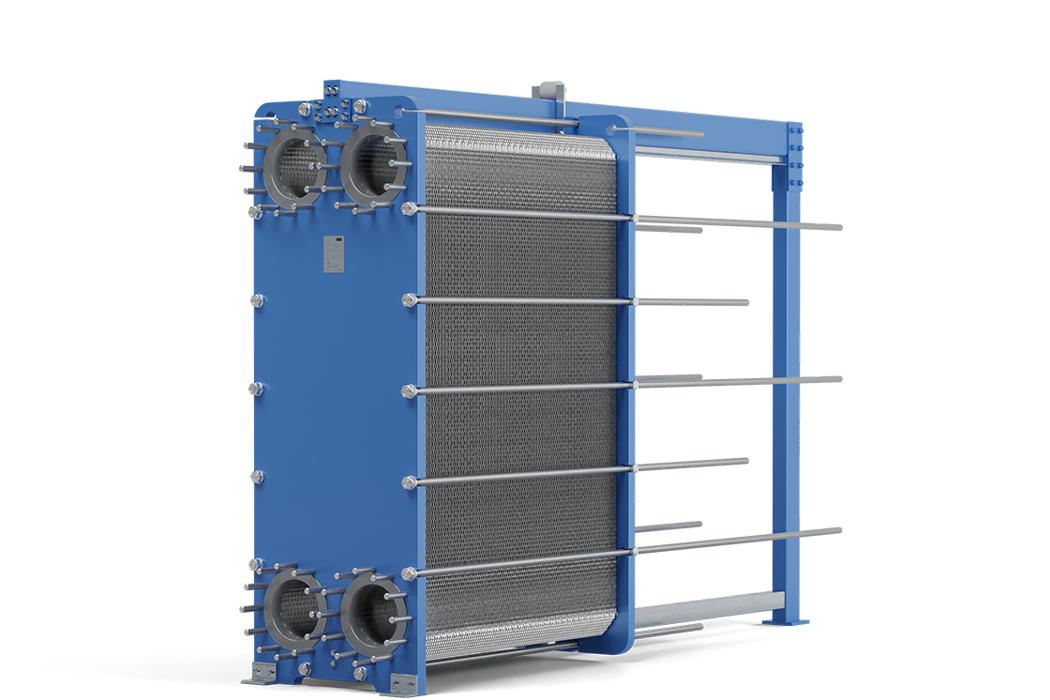

PLATE HEAT EXCHANGER
MAXIMIZING BOTH PERFORMANCE AND PRODUCT LIFETIME
Innovative technologies and smart design make our standard plate heat exchangers a stellar investment and the go-to choice for standard duties
- Experience the benefit of an individually customized solution that perfectly matches your requirements and lowers your energy consumption
- High performance for a low pressure drop eliminates unnecessary burdens on your system and optimizes overall system performance
- We design single-pass solutions when possible, as they are the preferred choice for almost all duties. With all connections on the head you do not need to disconnect the heat exchanger from the piping to perform inspection, cleaning, or service
- The design results in a compact solution with a small footprint, simple installation, and easy access for maintenance
- Connections from DN25 to DN600 (1″ to 24″)
- Frames designed according to FEA and PED 2014/68/EU (EN13445) and ASME sec VIII, Div. 1 construction standards
- Plate materials: AISI 304/316, titanium, SMO, Hastelloy*
- Gasket materials: EPDM-HT, NBR-HT, Viton*
- Plate lengths up to 5.5 m (18 ft)
- Flow rates up to 7,200 m3/h (31,700 gpm)
- Working pressure up to 35 bar (500 psi)
- Working temperatures from -20 °C to 180 °C (-4 °F to 356 °F)
